規格表

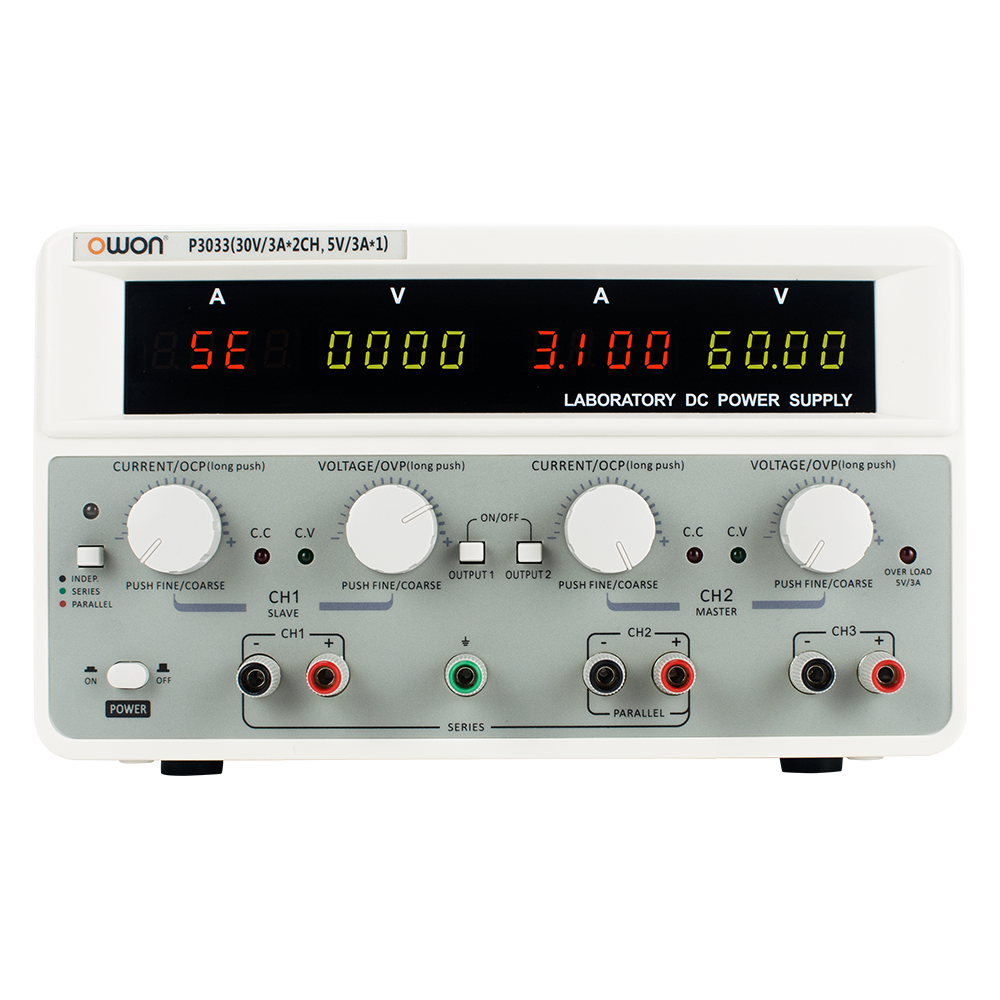

| 型番 | P3033 | P3053 |
|---|---|---|
| 動作温度 | 0 - 40℃ ≤ 80%RH | |
| リードバック分解能 | ||
| 電圧 | ||
| CH1 | 10mV | |
| CH2 | 10mV | |
| 電流 | ||
| CH1 | 1mA | |
| CH2 | 1mA | |
| リードバック確度 (25℃ ± 5℃) | ||
| 電圧 | ||
| CH1 | ≤0.03% + 10mV | |
| CH2 | ≤0.03% + 10mV | |
| 電流 | ||
| CH1 | ≤0.1% + 5mA | |
| CH2 | ≤0.1% + 5mA | |
| 設定分解能 | ||
| 電圧 | ||
| CH1 | 10mV | |
| CH2 | 10mV | |
| 電流 | ||
| CH1 | 1mA | |
| CH2 | 1mA | |
| ライン・レギュレーション | ||
| 電圧 | ||
| CH1 | ≤0.01% + 5mV | |
| CH2 | ≤0.01% + 5mV | |
| 電流 | ||
| CH1 | ≤0.1% + 5mA | |
| CH2 | ≤0.1% + 5mA | |
| 寸法（W×H×D） | 250 x 150 x 330 (mm) | |
| 設定確度（25℃±5℃） | ||
| 電圧 | ||
| CH1 | ≤0.03% + 10mV | |
| CH2 | ≤0.03% + 10mV | |
| 電流 | ||
| CH1 | ≤0.1% + 5mA | |
| CH2 | ≤0.1% + 5mA | |
| 定格出力 | ||
| 電圧 | ||
| CH1 | 0 - 30V | |
| CH2 | 0 - 30V | |
| CH3 | 5V | |
| 電流 | ||
| CH1 | 0 - 3A | 0 - 5A |
| CH2 | 0 - 3A | 0 - 5A |
| CH3 | 3A | |
| ロード・レギュレーション | ||
| 電圧 | ||
| CH1 | ≤0.01% + 5mV | |
| CH2 | ≤0.01% + 5mV | |
| CH3 | ≤15mV | |
| 電流 | ||
| CH1 | ≤0.1% + 5mA | |
| CH2 | ≤0.1% + 5mA | |
| 並列モード | ||
| 電源効率 | ||
| CH1 | ≤0.01% + 5mV | |
| CH2 | ≤0.01% + 5mV | |
| 負荷効率 | ||
| CH1 | ≤0.01% + 5mV | ≤0.02% + 5mV |
| CH2 | ≤0.01% + 5mV | ≤0.02% + 5mV |
| 直列モード | ||
| 電源効率 | ||
| CH1 | ≤0.01% + 5mV | |
| CH2 | ≤0.01% + 5mV | |
| 負荷効率 | ||
| CH1 | ≤0.01% + 5mV | ≤0.02% + 5mV |
| CH2 | ≤0.01% + 5mV | ≤0.02% + 5mV |
| リップル / ノイズ | ||
| 電圧 | ||
| CH1 | ≤2mVrms | |
| CH2 | ≤2mVrms | |
| CH3 | ≤2mVrms | |
| 電流 | ||
| CH1 | ≤5mArms | |
| CH2 | ≤5mArms | |
| CH3 | ≤5mArms | |
| 機械的仕様 | ||
| 本体重量 | ≈8kg | ≈9kg |
